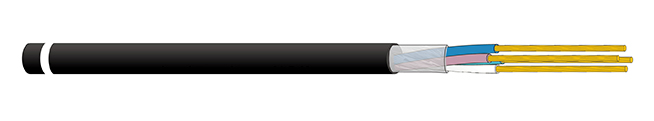

执行标准：GB/T5023.5-2008
额定电压：U○/U 为 300/500V
额定温度：70℃
本产品适用于弱电设备控制，通信信号的传输以及广播和弱电设备供电用线等
1. 电缆长期允许工作温度应不超过 70℃
2. 电缆敷设温度应不低于 0℃
3. 允许弯曲半径， 电缆外径(D)小于等于16mm时，应不小于4D，大于16mm时，应不小于6D
4. 护套采用优质聚氯乙烯材质，抗老化，耐磨损，防水，防油，防化学腐蚀，无毒等特性
5. 200m/500m 每卷或定制长度
| |||||||||
60227 IEC 52(RVV) 300/300V 型软线的综合数据 | |||||||||
芯线×标称截面(mm2) | 导体结构(NO./mm) | 绝缘厚度规定值(mm) | 护套厚度规定值(mm) | 平均外径(mm) | 20℃时导体电阻最大值(Ω/KM) | 70℃时绝缘电阻最小值(MΩ/KM) | |||
下限 | 上限 | 铜芯 | 镀锡铜芯 | ||||||
2×0.5 | 16/0.20 | 0.50 | 0.60 | 4.6或3.0×4.9 | 5.9或3.7×5.9 | 39.0 | 40.1 | 0.012 | |
2×0.75 | 24/0.20 | 0.50 | 0.60 | 4.9或3.2×5.2 | 6.3或3.8×6.3 | 26.0 | 26.7 | 0.010 | |
3×0.5 | 16/0.20 | 0.50 | 0.60 | 4.90 | 6.30 | 39.0 | 40.1 | 0.012 | |
3×0.75 | 24/0.20 | 0.50 | 0.60 | 5.20 | 6.70 | 26.0 | 26.7 | 0.010 | |
|
|
|
|
|
|
|
|
| |
60227 IEC 53(RVV) 300/500V 软电线的综合数据 | |||||||||
芯线×标称截面(mm2) | 导体结构(NO./mm) | 绝缘厚度规定值(mm) | 护套厚度规定值(mm) | 平均外径(mm) | 20℃时导体电阻最大值(Ω/KM) | 70℃时绝缘电阻最小值(MΩ/KM) | |||
下限 | 上限 | 铜芯 | 镀锡铜芯 | ||||||
2×0.75 | 24/0.20 | 0.60 | 0.8 | 5.7或3.7×6.0 | 7.2或4.5×7.2 | 26.0 | 26.7 | 0.011 | |
3×1 | 32/0.20 | 0.60 | 0.8 | 5.9或3.9×6.2 | 7.5或4.7×7.5 | 19.5 | 20.0 | 0.010 | |
2×1.5 | 30/0.25 | 0.70 | 0.8 | 6.8 | 8.6 | 13.3 | 13.7 | 0.010 | |
2×2.5 | 50/0.25 | 0.80 | 1.0 | 8.4 | 10.6 | 7.98 | 8.21 | 0.009 | |
3×0.75 | 24/0.20 | 0.60 | 0.8 | 6.0 | 7.6 | 26.0 | 26.7 | 0.011 | |
3×1 | 32/0.20 | 0.60 | 0.8 | 6.3 | 8.0 | 19.5 | 20.0 | 0.010 | |
3×1.5 | 30/0.25 | 0.70 | 0.9 | 7.4 | 9.4 | 13.3 | 13.7 | 0.010 | |
3×2.5 | 50/0.25 | 0.80 | 1.1 | 9.2 | 11.4 | 7.98 | 8.21 | 0.009 | |
4×0.75 | 24/0.20 | 0.60 | 0.8 | 6.6 | 8.3 | 26.0 | 26.7 | 0.011 | |
4×1 | 32/0.20 | 0.60 | 0.9 | 7.1 | 9.0 | 19.5 | 20.0 | 0.010 | |
4×1.5 | 30/0.25 | 0.70 | 1.0 | 8.4 | 10.5 | 13.3 | 13.7 | 0.010 | |
4×2.5 | 50/0.25 | 0.80 | 1.1 | 10.1 | 12.5 | 7.98 | 8.21 | 0.009 | |
5×0.75 | 24/0.20 | 0.60 | 0.9 | 7.4 | 9.3 | 26.0 | 26.7 | 0.011 | |
5×1 | 32/0.20 | 0.60 | 0.9 | 7.8 | 9.8 | 19.5 | 20.0 | 0.010 | |
5×1.5 | 30/0.25 | 0.70 | 1.1 | 9.3 | 11.6 | 13.3 | 13.7 | 0.010 | |
5×2.5 | 50/0.25 | 0.80 | 1.2 | 11.2 | 13.9 | 7.98 | 8.21 | 0.009 | |
|
|
|
|
|
|
|
|
| |
60227 IEC 56(RVV-90) 300/300V 软线的综合数据 | |||||||||
芯线×标称截面(mm2) | 导体结构(NO./mm) | 绝缘厚度规定值(mm) | 护套厚度规定值(mm) | 平均外径(mm) | 20℃时导体电阻最大值(Ω/KM) | 70℃时绝缘电阻最小值(MΩ/KM) | |||
下限 | 上限 | 铜芯 | 镀锡铜芯 | ||||||
2×0.5 | 16/0.20 | 0.5 | 0.6 | 4.6或3.0×4.9 | 5.9或3.7×5.9 | 39 | 40.1 | 0.012 | |
2×0.75 | 24/0.20 | 0.5 | 0.6 | 4.9或3.2×5.2 | 6.3或3.8×6.3 | 26 | 26.7 | 0.010 | |
3×0.5 | 16/0.20 | 0.5 | 0.6 | 4.9 | 6.3 | 39 | 40.1 | 0.012 | |
3×0.75 | 24/0.20 | 0.5 | 0.6 | 5.2 | 6.7 | 26 | 26.7 | 0.010 | |
|
|
|
|
|
|
|
|
| |
60227 IEC 57(RVV-90) 300/500V 软线的综合数据 | |||||||||
芯线×标称截面(mm2) | 导体结构(NO./mm) | 绝缘厚度规定值(mm) | 护套厚度规定值(mm) | 平均外径(mm) | 20℃时导体电阻最大值(Ω/KM) | 70℃时绝缘电阻最小值(MΩ/KM) | |||
下限 | 上限 | 铜芯 | 镀锡铜芯 | ||||||
2×0.75 | 24/0.20 | 0.50 | 0.8 | 5.7或3.7×6.0 | 7.2或4.5×7.2 | 26.0 | 26.7 | 0.011 | |
2×1 | 32/0.20 | 0.60 | 0.8 | 5.9或3.9×6.2 | 7.5或4.7×7.5 | 19.5 | 20.0 | 0.010 | |
2×1.5 | 30/0.25 | 0.70 | 0.8 | 6.8 | 8.6 | 13.3 | 13.7 | 0.010 | |
2×2.5 | 50/0.25 | 0.80 | 1.0 | 8.4 | 10.6 | 10.6 | 8.21 | 0.009 | |
3×0.75 | 24/0.20 | 0.60 | 0.8 | 6.0 | 7.6 | 26.0 | 26.7 | 0.011 | |
3×1 | 32/0.20 | 0.60 | 0.8 | 6.3 | 8.0 | 19.5 | 20.0 | 0.010 | |
3×1.5 | 30/0.25 | 0.70 | 0.9 | 7.4 | 9.4 | 13.3 | 13.7 | 0.010 | |
3×2.5 | 50/0.25 | 0.80 | 1.1 | 9.2 | 11.4 | 7.98 | 8.21 | 0.009 | |
4×0.75 | 24/0.20 | 0.60 | 0.8 | 6.6 | 8.3 | 26.0 | 26.7 | 0.011 | |
4×1 | 32/0.20 | 0.60 | 0.9 | 7.1 | 9.0 | 19.5 | 20.0 | 0.010 | |
4×1.5 | 30/0.25 | 0.70 | 1.0 | 8.4 | 10.5 | 13.3 | 13.7 | 0.010 | |
4×2.5 | 50/0.25 | 0.80 | 1.1 | 10.1 | 12.5 | 7.98 | 8.21 | 0.009 | |
5×0.75 | 24/0.20 | 0.60 | 0.9 | 7.4 | 9.3 | 26.0 | 26.7 | 0.011 | |
5×1 | 32/0.20 | 0.60 | 0.9 | 7.8 | 9.8 | 19.5 | 20.0 | 0.010 | |
5×1.5 | 30/0.25 | 0.70 | 1.1 | 9.3 | 11.6 | 13.3 | 13.7 | 0.010 | |
|
|
|
|
|
|
|
|
| |
