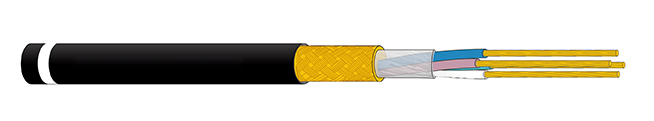

执行标准：JB/T8734.5-2012
额定电压：U○/U 为 300/300V
适用于智能建筑楼宇自动化控制系统，防盗报警，一卡通系统，智能家居，机械仪表和电子设备等需要屏蔽抗干扰系统用线
1. 电缆长期允许工作温度应不超过 70℃
2. 电缆敷设温度应不低于 0℃
3. 允许弯曲半径， 电缆外径(D)小于等于16mm时，应不小于4D，大于16mm时，应不小于6D
4. 屏蔽采用裸铜丝高密度编织或缠绕，有效阻隔外界电磁干扰
5. 护套材料为优质聚氯乙烯，抗老化，耐磨损，防水，防油，防化学腐蚀，无毒等特性
6. 200m/500m 每卷或定制长度
RVVP/RVVP1 型 300/300V 铜芯聚氯乙烯绝缘屏蔽聚氯乙烯护套软电线的综合数据 | |||||||||
芯线×标称截面(mm2) | 导体结构(NO./mm) | 绝缘厚度规定值(mm) | 屏蔽层单线直径（mm） | 护套厚度规定值(mm) | 平均外径(mm) | 20℃时导体电阻最大值(Ω/KM) | 70℃时绝缘电阻最小值(MΩ/KM) | ||
下限 | 上限 | 铜芯 | 镀锡铜芯 | ||||||
1×0.08 | 7/0.12 | 0.4 | 0.10 | 0.4 | 2.4 | 2.9 | 247 | 254 | 0.018 |
1×0.12 | 7/0.15 | 0.4 | 0.10 | 0.4 | 2.4 | 3.0 | 158 | 163 | 0.016 |
1×0.2 | 12/0.15 | 0.4 | 0.10 | 0.4 | 2.6 | 3.2 | 92.3 | 95.0 | 0.013 |
1×0.3 | 16/0.15 | 0.5 | 0.10 | 0.4 | 2.9 | 3.5 | 69.2 | 71.2 | 0.014 |
1×0.4 | 23/0.15 | 0.5 | 0.10 | 0.4 | 3.0 | 3.7 | 48.2 | 49.6 | 0.013 |
1×0.5 | 16/0.20 | 0.5 | 0.10 | 0.4 | 3.1 | 3.8 | 39.0 | 40.1 | 0.012 |
1×0.75 | 24/0.20 | 0.5 | 0.10 | 0.4 | 3.4 | 4.1 | 26.0 | 26.7 | 0.010 |
1×1.0 | 32/0.20 | 0.6 | 0.10 | 0.6 | 4.1 | 4.9 | 19.5 | 20.0 | 0.010 |
1×1.5 | 30/0.25 | 0.6 | 0.10 | 0.6 | 4.3 | 5.2 | 13.3 | 13.7 | 0.009 |
1×2.5 | 49/0.25 | 0.7 | 0.15 | 0.6 | 4.9 | 6.0 | 7.98 | 8.21 | 0.008 |
2×0.08 | 7/0.12 | 0.4 | 0.10 | 0.4 | 3.2 2.4×3.5 | 4.2 2.9×4.2 | 247 | 254 | 0.018 |
2×0.12 | 7/0.15 | 0.4 | 0.10 | 0.6 | 3.7 2.8×4.0 | 4.9 2.9×4.2 | 158 | 163 | 0.016 |
2×0.2 | 12/0.15 | 0.4 | 0.10 | 0.6 | 4.1 3.0×4.4 | 5.3 3.6×5.3 | 92.3 | 95.0 | 0.013 |
2×0.3 | 16/0.15 | 0.5 | 0.15 | 0.6 | 4.8 3.5×5.1 | 6.2 4.2×6.2 | 69.2 | 71.2 | 0.014 |
2×0.4 | 23/0.15 | 0.5 | 0.15 | 0.6 | 5.1 3.6×5.4 | 6.6 4.4×6.6 | 48.2 | 49.6 | 0.013 |
2×0.5 | 16/0.20 | 0.5 | 0.15 | 0.6 | 5.3 3.7×5.6 | 6.8 4.5×6.8 | 39.0 | 40.1 | 0.012 |
2×0.75 | 24/0.20 | 0.5 | 0.15 | 0.6 | 5.8 4.0×6.1 | 7.4 4.8×7.4 | 26.0 | 26.7 | 0.010 |
2×1.0 | 32/0.20 | 0.6 | 0.15 | 0.6 | 6.4 4.3×6.7 | 8.2 5.2×8.3 | 19.5 | 20.0 | 0.010 |
2×1.5 | 30/0.25 | 0.6 | 0.15 | 0.8 | 7.3 4.9×7.6 | 9.2 6.0×9.3 | 13.3 | 13.7 | 0.009 |
2×2.5 | 49/0.25 | 0.7 | 0.16 | 1.0 | 8.5 | 10.5 | 7.98 | 8.21 | 0.009 |
2×4 | 81/0.25 | 0.8 | 0.21 | 1.2 | 10.0 | 12.0 | 4.95 | 5.09 | 0.007 |
3×0.12 | 7/0.15 | 0.4 | 0.10 | 0.6 | 3.9 | 5.1 | 158 | 163 | 0.016 |
3×0.2 | 12/0.15 | 0.4 | 0.15 | 0.6 | 4.5 | 5.8 | 92.3 | 95.0 | 0.013 |
3×0.3 | 16/0.15 | 0.5 | 0.15 | 0.6 | 5.1 | 6.5 | 69.2 | 71.2 | 0.014 |
3×0.4 | 23/0.15 | 0.5 | 0.15 | 0.6 | 5.4 | 6.9 | 48.2 | 49.6 | 0.013 |
3×0.5 | 16/0.20 | 0.5 | 0.15 | 0.6 | 5.6 | 7.1 | 39.0 | 40.1 | 0.012 |
3×0.75 | 24/0.20 | 0.5 | 0.15 | 0.6 | 6.1 | 7.8 | 26.0 | 26.7 | 0.010 |
3×1.0 | 32/0.20 | 0.6 | 0.15 | 0.8 | 7.2 | 9.1 | 19.5 | 20.0 | 0.010 |
3×1.5 | 30/0.25 | 0.6 | 0.20 | 0.8 | 8.0 | 10.0 | 13.3 | 13.7 | 0.009 |
3×2.5 | 50/0.25 | 0.7 | 0.16 | 1.0 | 9.1 | 11.1 | 7.98 | 8.21 | 0.009 |
3×4 | 81/0.25 | 0.8 | 0.21 | 1.2 | 11.0 | 13.0 | 4.95 | 5.09 | 0.007 |
4×0.12 | 7/0.15 | 0.4 | 0.15 | 0.6 | 4.5 | 5.8 | 158 | 163 | 0.016 |
4×0.2 | 12/0.15 | 0.4 | 0.15 | 0.6 | 4.9 | 6.2 | 92.3 | 95.0 | 0.013 |
4×0.3 | 16/0.15 | 0.5 | 0.15 | 0.6 | 5.5 | 7.0 | 69.2 | 71.2 | 0.014 |
4×0.4 | 23/0.15 | 0.5 | 0.15 | 0.6 | 5.9 | 7.5 | 48.2 | 49.6 | 0.013 |
4×0.5 | 16/0.20 | 0.5 | 0.16 | 0.8 | 5.8 | 7.8 | 39.0 | 40.1 | 0.013 |
4×0.75 | 24/0.20 | 0.5 | 0.16 | 0.8 | 6.1 | 8.1 | 26.0 | 26.7 | 0.011 |
4×1.0 | 32/0.20 | 0.6 | 0.16 | 0.9 | 7.4 | 9.4 | 19.5 | 20.0 | 0.010 |
4×1.5 | 30/0.25 | 0.6 | 0.16 | 0.9 | 8.0 | 10.0 | 13.3 | 13.7 | 0.010 |
4×2.5 | 50/0.25 | 0.7 | 0.16 | 1.0 | 10.2 | 12.2 | 4.95 | 5.09 | 0.009 |
5×0.12 | 7/0.15 | 0.4 | 0.15 | 0.6 | 4.8 | 6.2 | 158 | 163 | 0.016 |
5×0.2 | 12/0.15 | 0.4 | 0.15 | 0.6 | 5.3 | 6.7 | 92.3 | 95.0 | 0.013 |
5×0.3 | 16/0.15 | 0.5 | 0.15 | 0.6 | 6.0 | 7.6 | 69.2 | 71.2 | 0.014 |
5×0.4 | 23/0.15 | 0.5 | 0.15 | 0.6 | 6.4 | 8.1 | 48.2 | 49.6 | 0.013 |
5×0.5 | 16/0.20 | 0.5 | 0.16 | 0.8 | 6.2 | 8.2 | 39.0 | 40.1 | 0.013 |
5×0.75 | 24/0.20 | 0.5 | 0.16 | 0.8 | 6.6 | 8.6 | 26.0 | 26.7 | 0.011 |
5×1.0 | 32/0.20 | 0.6 | 0.16 | 0.9 | 8.0 | 10.0 | 19.5 | 20.0 | 0.010 |
5×1.5 | 30/0.25 | 0.6 | 0.16 | 1.0 | 9.1 | 11.1 | 13.3 | 13.7 | 0.010 |
5×2.5 | 50/0.25 | 0.7 | 0.21 | 1.1 | 11.7 | 13.7 | 4.95 | 5.09 | 0.009 |
（6、7）×0.12 | 7/0.15 | 0.4 | 0.15 | 0.6 | 5.2 | 6.6 | 158 | 163 | 0.016 |
（6、7）×0.2 | 12/0.15 | 0.4 | 0.15 | 0.6 | 5.7 | 7.2 | 92.3 | 95.0 | 0.013 |
（6、7）×0.3 | 16/0.15 | 0.5 | 0.15 | 0.6 | 6.5 | 8.2 | 69.2 | 71.2 | 0.014 |
（6、7）×0.4 | 23/0.15 | 0.5 | 0.15 | 0.8 | 7.3 | 9.2 | 48.2 | 49.6 | 0.013 |
6×0.5 | 16/0.20 | 0.5 | 0.16 | 0.8 | 7.0 | 9.0 | 39.0 | 40.1 | 0.013 |
6×0.75 | 24/0.20 | 0.5 | 0.16 | 0.8 | 7.5 | 9.5 | 26.0 | 26.7 | 0.011 |
6×1.0 | 32/0.20 | 0.6 | 0.16 | 1.0 | 9.0 | 11.0 | 19.5 | 20.0 | 0.010 |
6×1.5 | 30/0.25 | 0.6 | 0.16 | 1.0 | 10.0 | 12.0 | 13.3 | 13.7 | 0.010 |
6×2.5 | 50/0.25 | 0.7 | 0.21 | 1.1 | 13.0 | 15.0 | 4.95 | 5.09 | 0.009 |
7×0.5 | 16/0.20 | 0.5 | 0.16 | 0.8 | 7.3 | 9.3 | 39.0 | 40.1 | 0.013 |
7×0.75 | 24/0.20 | 0.5 | 0.16 | 0.8 | 8.5 | 10.3 | 26.0 | 26.7 | 0.011 |
7×1.0 | 32/0.20 | 0.6 | 0.16 | 1.0 | 10.2 | 12.2 | 19.5 | 20.0 | 0.010 |
7×1.5 | 30/0.25 | 0.6 | 0.21 | 1.0 | 11.0 | 13.0 | 13.3 | 13.7 | 0.010 |
7×2.5 | 50/0.25 | 0.7 | 0.21 | 1.1 | 14.0 | 16.2 | 4.95 | 5.09 | 0.009 |
8×0.12 | 7/0.15 | 0.4 | 0.16 | 0.6 | 5.1 | 7.1 | 158 | 163 | 0.016 |
8×0.2 | 12/0.15 | 0.4 | 0.16 | 0.6 | 5.6 | 7.6 | 92.3 | 95.0 | 0.013 |
8×0.3 | 16/0.15 | 0.5 | 0.16 | 0.6 | 6.7 | 8.7 | 69.2 | 71.2 | 0.014 |
8×0.4 | 23/0.15 | 0.5 | 0.16 | 0.8 | 7.8 | 9.8 | 48.2 | 49.6 | 0.013 |
8×0.5 | 16/0.20 | 0.5 | 0.16 | 0.8 | 7.9 | 9.9 | 39.0 | 40.1 | 0.013 |
8×0.75 | 24/0.20 | 0.5 | 0.16 | 0.8 | 8.5 | 10.5 | 26.0 | 26.7 | 0.011 |
8×1.0 | 32/0.20 | 0.6 | 0.16 | 0.9 | 10.4 | 12.6 | 19.5 | 20.0 | 0.010 |
8×1.5 | 30/0.25 | 0.6 | 0.21 | 1.0 | 11.6 | 13.8 | 13.3 | 13.7 | 0.010 |
8×2.5 | 50/0.25 | 0.7 | 0.21 | 1.2 | 15.0 | 17.2 | 4.95 | 5.09 | 0.009 |
9×0.12 | 7/0.15 | 0.4 | 0.16 | 0.6 | 5.5 | 7.5 | 158 | 163 | 0.016 |
9×0.2 | 12/0.15 | 0.4 | 0.16 | 0.8 | 6.9 | 9.0 | 92.3 | 95.0 | 0.013 |
9×0.3 | 16/0.15 | 0.5 | 0.16 | 0.8 | 7.0 | 9.2 | 69.2 | 71.2 | 0.014 |
9×0.4 | 23/0.15 | 0.5 | 0.16 | 0.8 | 8.2 | 9.8 | 48.2 | 49.6 | 0.013 |
9×0.5 | 16/0.20 | 0.5 | 0.16 | 0.8 | 8.6 | 10.6 | 39.0 | 40.1 | 0.013 |
9×0.75 | 24/0.20 | 0.5 | 0.16 | 0.8 | 8.3 | 10.3 | 26.0 | 26.7 | 0.011 |
9×1.0 | 32/0.20 | 0.6 | 0.21 | 0.9 | 11.0 | 12.8 | 19.5 | 20.0 | 0.010 |
9×1.5 | 30/0.25 | 0.6 | 0.21 | 1.0 | 12.0 | 14.2 | 13.3 | 13.7 | 0.010 |
9×2.5 | 50/0.25 | 0.7 | 0.21 | 1.2 | 15.6 | 17.8 | 4.95 | 5.09 | 0.009 |
10×0.12 | 7/0.15 | 0.4 | 0.15 | 0.6 | 6.4 | 8.1 | 158 | 163 | 0.016 |
10×0.2 | 12/0.15 | 0.4 | 0.15 | 0.8 | 7.4 | 9.3 | 92.3 | 95.0 | 0.013 |
10×0.3 | 16/0.15 | 0.5 | 0.20 | 0.8 | 9.7 | 10.9 | 69.2 | 71.2 | 0.014 |
10×0.4 | 23/0.15 | 0.5 | 0.20 | 0.8 | 9.3 | 11.6 | 48.2 | 49.6 | 0.013 |
10×0.5 | 16/0.20 | 0.5 | 0.21 | 0.9 | 8.9 | 10.9 | 39.0 | 40.1 | 0.013 |
10×0.75 | 24/0.20 | 0.5 | 0.21 | 1.0 | 10.3 | 12.3 | 26.0 | 26.7 | 0.011 |
10×1.0 | 32/0.20 | 0.6 | 0.21 | 1.0 | 12.0 | 14.0 | 19.5 | 20.0 | 0.010 |
10×1.5 | 30/0.25 | 0.6 | 0.21 | 1.1 | 12.7 | 15.0 | 13.3 | 13.7 | 0.010 |
10×2.5 | 50/0.25 | 0.7 | 0.21 | 1.2 | 16.3 | 18.5 | 4.95 | 5.09 | 0.009 |
12×0.12 | 7/0.15 | 0.4 | 0.15 | 0.6 | 6.6 | 8.3 | 158 | 163 | 0.009 |
12×0.2 | 12/0.15 | 0.4 | 0.15 | 0.8 | 7.6 | 9.6 | 92.3 | 95.0 | 0.013 |
12×0.3 | 16/0.15 | 0.5 | 0.2 | 0.8 | 9.0 | 11.2 | 69.2 | 71.2 | 0.014 |
12×0.4 | 23/0.15 | 0.5 | 0.2 | 0.8 | 9.6 | 11.9 | 48.2 | 49.6 | 0.013 |
12×0.5 | 16/0.20 | 0.5 | 0.21 | 0.9 | 9.5 | 11.5 | 39.0 | 40.1 | 0.013 |
12×0.75 | 24/0.20 | 0.5 | 0.21 | 1.0 | 11.2 | 13.2 | 26.0 | 26.7 | 0.011 |
12×1.0 | 32/0.20 | 0.6 | 0.2 | 1.0 | 12.5 | 14.8 | 19.5 | 20.0 | 0.010 |
12×1.5 | 30/0.25 | 0.6 | 0.21 | 1.2 | 14.0 | 16.2 | 13.3 | 13.7 | 0.010 |
12×2.5 | 50/0.25 | 0.7 | 0.21 | 1.4 | 18.0 | 20.2 | 4.95 | 5.09 | 0.009 |
14×0.12 | 7/0.15 | 0.4 | 0.15 | 0.8 | 7.2 | 9.1 | 158 | 163 | 0.016 |
14×0.2 | 12/0.15 | 0.4 | 0.2 | 0.8 | 8.2 | 10.3 | 92.3 | 95.0 | 0.013 |
14×0.3 | 16/0.15 | 0.5 | 0.2 | 0.8 | 9.4 | 11.7 | 69.2 | 71.2 | 0.014 |
14×0.4 | 23/0.15 | 0.5 | 0.2 | 0.8 | 10.0 | 12.5 | 48.2 | 49.6 | 0.013 |
16×0.12 | 7/0.15 | 0.4 | 0.2 | 0.8 | 7.6 | 9.5 | 158 | 163 | 0.016 |
16×0.2 | 12/0.15 | 0.4 | 0.2 | 0.8 | 8.6 | 10.8 | 82.3 | 95.0 | 0.013 |
16×0.3 | 16/0.15 | 0.5 | 0.2 | 0.8 | 9.9 | 12.3 | 69.2 | 71.2 | 0.014 |
16×0.4 | 23/0.15 | 0.5 | 0.2 | 0.8 | 10.5 | 13.1 | 48.2 | 49.6 | 0.013 |
16×0.5 | 16/0.20 | 0.5 | 0.21 | 1.0 | 10.7 | 12.7 | 39.0 | 40.1 | 0.013 |
16×0.75 | 24/0.20 | 0.5 | 0.21 | 1.2 | 12.4 | 14.6 | 26.0 | 26.7 | 0.011 |
16×1.0 | 32/0.20 | 0.6 | 0.21 | 1.2 | 14.5 | 16.8 | 19.5 | 20.0 | 0.010 |
16×1.5 | 30/0.25 | 0.6 | 0.21 | 1.2 | 15.6 | 17.8 | 13.3 | 13.7 | 0.010 |
16×2.5 | 50/0.25 | 0.7 | 0.21 | 1.4 | 20.0 | 22.5 | 4.95 | 5.09 | 0.009 |
19×0.12 | 7/0.15 | 0.4 | 0.2 | 0.8 | 8.2 | 10.3 | 158 | 163 | 0.016 |
19×0.2 | 12/0.15 | 0.4 | 0.2 | 0.8 | 9.0 | 11.3 | 92.3 | 95.0 | 0.013 |
19×0.3 | 16/0.15 | 0.5 | 0.2 | 0.8 | 10.4 | 12.9 | 69.2 | 71.2 | 0.014 |
19×0.4 | 23/0.15 | 0.5 | 0.2 | 1.0 | 11.5 | 14.2 | 48.2 | 49.6 | 0.013 |
20×0.12 | 7/0.15 | 0.4 | 0.16 | 0.8 | 7.4 | 9.4 | 158 | 163 | 0.016 |
20×0.2 | 12/0.15 | 0.4 | 0.16 | 0.8 | 9.8 | 11.8 | 92.3 | 95.0 | 0.013 |
20×0.3 | 16/0.15 | 0.5 | 0.16 | 0.8 | 10.6 | 12.2 | 69.2 | 71.2 | 0.014 |
20×0.4 | 23/0.15 | 0.5 | 0.16 | 1.0 | 11.6 | 13.8 | 48.2 | 49.6 | 0.013 |
20×0.5 | 16/0.20 | 0.5 | 0.21 | 1.0 | 12.5 | 14.6 | 39.0 | 40.1 | 0.013 |
24×0.12 | 7/0.15 | 0.4 | 0.2 | 0.8 | 9.4 | 11.7 | 158 | 163 | 0.016 |
24×0.2 | 12/0.15 | 0.4 | 0.2 | 0.8 | 10.4 | 12.9 | 92.3 | 95.0 | 0.013 |
24×0.3 | 16/0.15 | 0.5 | 0.2 | 1.0 | 12.4 | 14.4 | 69.2 | 71.2 | 0.014 |
24×0.4 | 23/0.15 | 0.5 | 0.2 | 1.0 | 13.2 | 16.4 | 48.2 | 49.6 | 0.013 |
26×0.12 | 7/0.15 | 0.4 | 0.21 | 0.8 | 9.0 | 11.0 | 158 | 163 | 0.016 |
26×0.2 | 12/0.15 | 0.4 | 0.21 | 0.8 | 9.6 | 11.8 | 92.3 | 95.0 | 0.013 |
26×0.3 | 16/0.15 | 0.5 | 0.21 | 1.0 | 10.0 | 12.2 | 69.2 | 71.2 | 0.014 |
26×0.4 | 23/0.15 | 0.5 | 0.2 | 1.0 | 13.0 | 15.6 | 48.2 | 49.6 | 0.013 |
26×0.5 | 16/0.20 | 0.5 | 0.21 | 1.0 | 14.4 | 16.6 | 39.0 | 40.1 | 0.013 |
